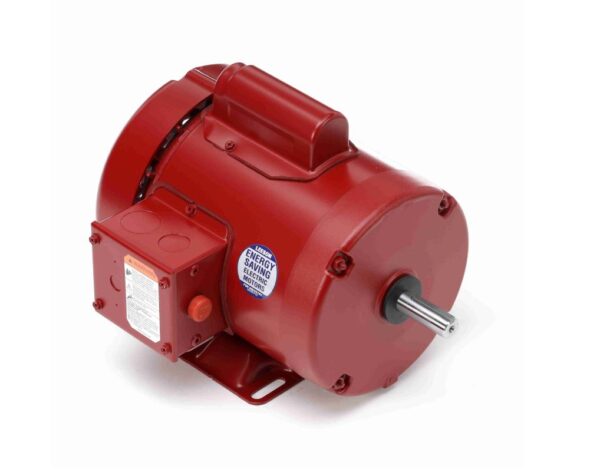

Leeson Farm Duty Motor
110086
0.5HP
Voltage – 115/230
1725 RPM
56 Frame
1 – Phase
Amps – 8.8/4.4
Service Factor – 1.15
Efficiency – 0.66
Hz – 60 Hz
Insulation – B
Duty – Continuous
Enclosure – Totally Enclosed Fan Cooled
Thermal Protection – Manual
Ambient Temperature – 40°C
Drive End Bearing – 6203
Non-Drive End Bearing – 6203
CSA Approved – Y
Rotation – Selective Counterclockwise
Mounting – Rigid Base
Material – Rolled Steel
Shaft Diameter – 0.625 in
Shaft Length – 1.88 in
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Double-shielded bearings extend the service life of the motor.
Single and three phase, TEFC, TEAO, and ODP construction.
Overload protection prevents motor from overheating.
LEESON® Farm/Ag motors are designed for one thing—work. Specifically, to handle high-starting loads and severe-duty applications of the agricultural industry. For more than 40 years, we have listened to user feedback to help engineer motor solutions that work just as you expect. The result is the development of specialty OEM motor designs, stock replacement motors as well as new equipment solutions.
