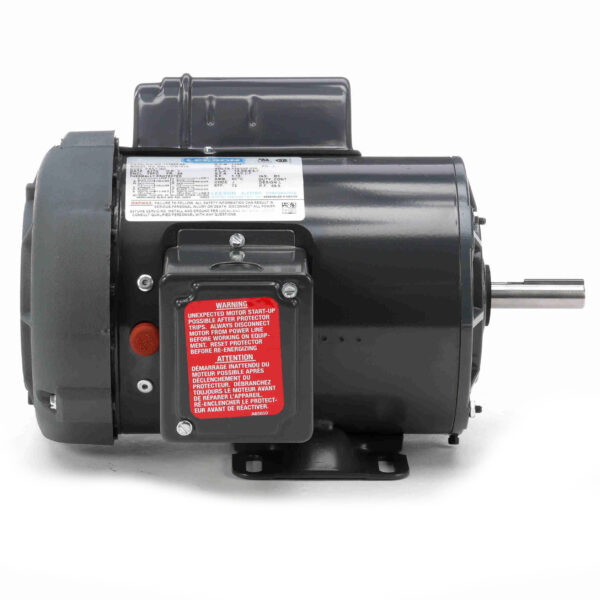

Leeson Farm Duty Motor
117865
1HP
Voltage – 115/230
1725 RPM
56 Frame
1 – Phase
Amps – 13.4/6.8-6.7
Service Factor – 1.15
Efficiency – 0.72
Hz – 60 Hz
Insulation – B
Duty – Continuous
Enclosure – Totally Enclosed Fan Cooled
Thermal Protection – Manual
Ambient Temperature – 40°C
Drive End Bearing – 6203
Non-Drive End Bearing – 6203
CSA Approved – Y
Rotation – Selective Counterclockwise
Mounting – Rigid Base
Material – Rolled Steel
Shaft Diameter – 0.625 in
Shaft Length – 1.88 in
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Double-shielded bearings extend the service life of the motor.
Single and three phase, TEFC, TEAO, and ODP construction.
Overload protection prevents motor from overheating.
