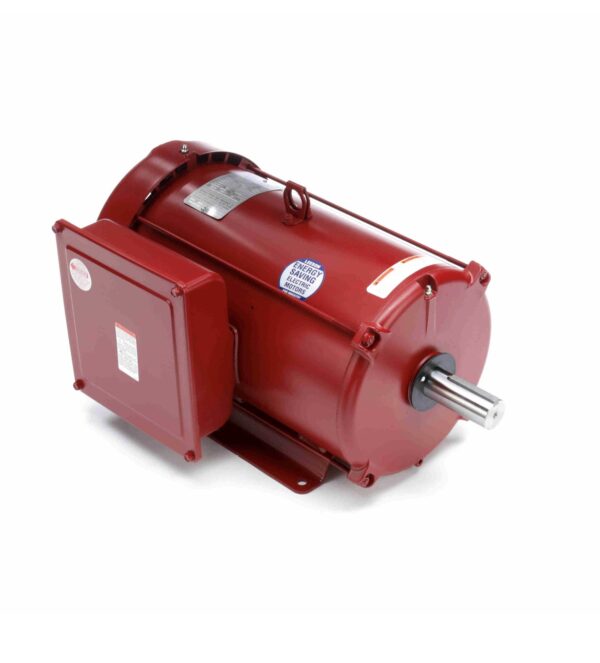

Leeson Farm Duty Motor
5HP
Voltage – 230
1740 RPM
215TZ Frame
1 – Phase
Amps – 24
Service Factor – 1.15
Efficiency – 0.825
Hz – 60 Hz
Insulation – F
Duty – Continuous
Enclosure – Totally Enclosed Fan Cooled
Thermal Protection – Manual
Ambient Temperature – 40°C
Drive End Bearing – 6207
Non-Drive End Bearing – 6206
CSA Approved – Y
Rotation – Selective Counterclockwise
Mounting – Rigid Base
Material – Rolled Steel
Shaft Diameter – 1.125 in
Shaft Length – 3.37 in
Gasketed capacitor cases and conduit box covers
Meets or exceeds NEMA service factors
Double sealed ball bearings
Single phase designs
Condensate drains on general purpose Ag motors
Low temperature manual overload protected
High starting torque ratings
