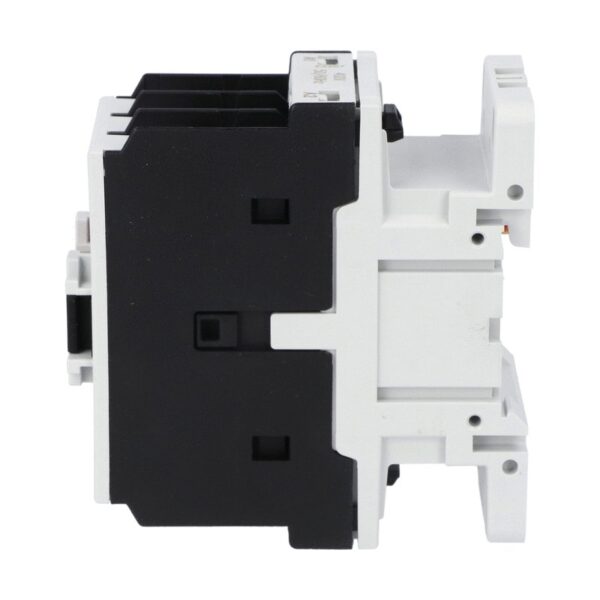

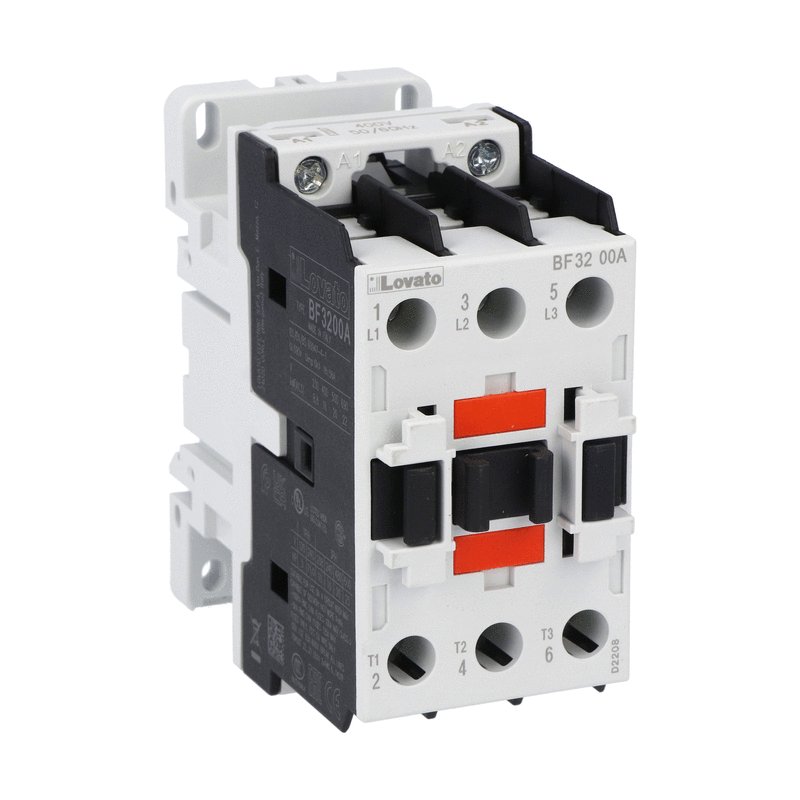

Lovato BF Series Three Pole AC Contactor
BF3200A12060
Amps (AC3) – 32
Coil Voltage – 120VAC
Poles – 3
Maximum UL/CSA Horsepower Ratings
HP AT 600V – 25
HP AT 480V – 20
HP AT 240V – 10
HP AT 200V – N/A
HP AT 240V 1-PHASE – 7.5
HP AT 120V 1-PHASE – 3
Features:
Up to Eight auxiliary contacts can be mounted
Highly conductive auxiliary contacts
Available with AC or DC Coils
Screw Terminals
Contactor mounting on and removal from a 35mm DIN rail are tool-less operations and are done by simply applying pressure on the contactor.
Rubber insert prevents the contactors from sliding on the 35mm DIN rail even when out of tolerance or mounted vertically.
On the contactors, its quick and easy to fit and remove auxiliary contacts and accessories without using tools.
Magnetic Contactors Provide Compact Electrically-Operated Load Control For Diverse Load Switching Needs.
