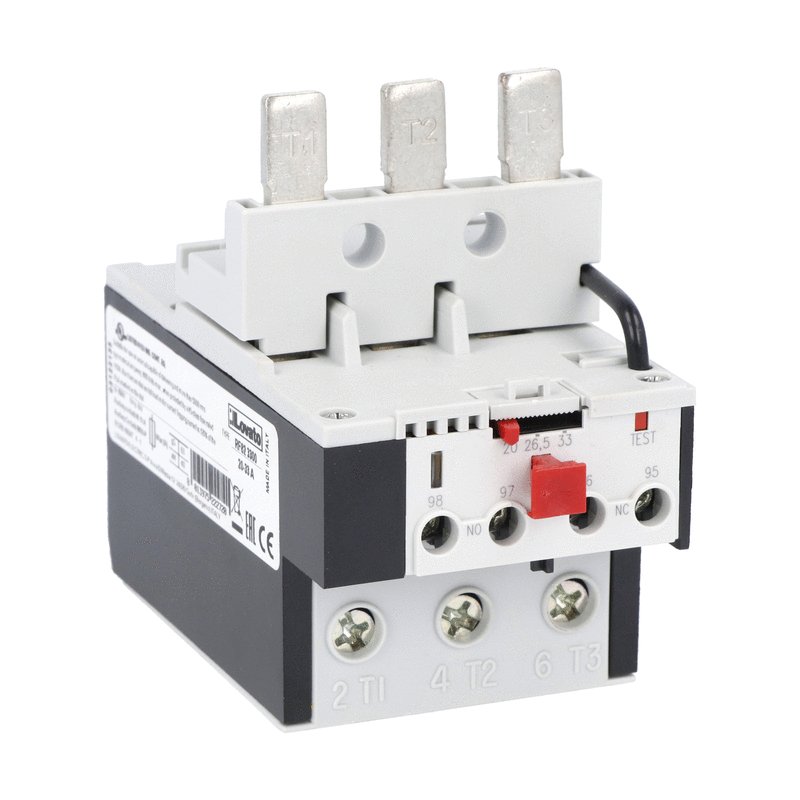

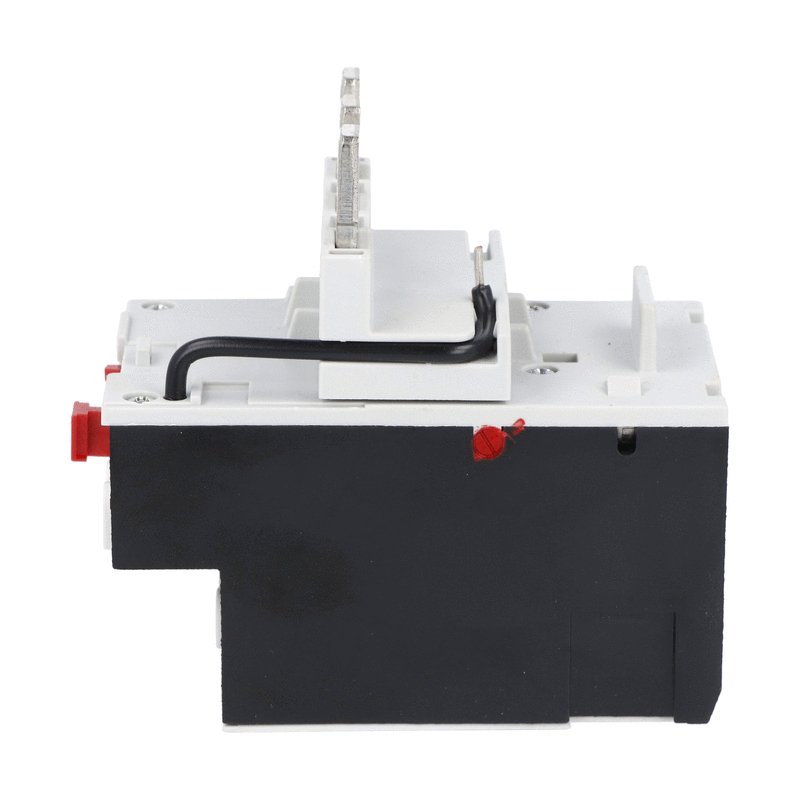

Motor Protection Overload Relay
RF824200
Amp Range 28-42
Style – BF40-BF94
Poles – 3
Overload relay with adjustable amperage range and mounts to any BF09, BF12, BF18, BF25 or BF32 3-pole contactor. This overload relay has phase loss protection (single phase sensitivity), manual or automatic reset options and screw terminals for easy and quick installation. This overload includes a set of normally open and normally closed auxiliary contacts and when wired to the coil connection of the contactor, cut power thus providing complete motor protection.
